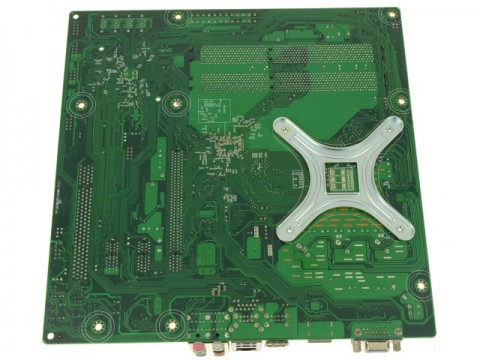

Dell Inspiron 560 Desktop Motherboard System Mainboard – 18D1Y

$75 $69

Part Number 18D1Y
Condition Refurbished
Item Weight 2.2 lb(s)

SKU: 13 Category:

Share on FacebookTweet about this on TwitterShare on LinkedInShare on Google+Pin on Pinterest
INQUIRY

Dell Inspiron 560 Desktop Motherboard System Mainboard – 18D1Y

Compatible Dell Desktop Systems:
Inspiron 560 Desktop

DP/N: 18D1Y, 018D1Y

CPU Socket: LGA 775
System Chipset: Intel G43

System Board Connectors-
Memory: four 240-pin connectors
PCI: one 124-pin connector
PCI Express x1: two 36-pin connectors
PCI Express x16: one 164-pin connector
Power (system board): one 24-pin EPS 12V connector (ATX-compatible)
Processor fan: one 4-pin connector
Chassis fan: one 3-pin connector
Front USB connector: three 9-pin connectors

Front audio connector-
one 9-pin connector for 2-channel stereo sound and microphone
SATA: four 7-pin connectors

External Connectors-
Network adapter: one RJ45 connector
USB: two front panel and four back-panel USB 2.0-compliant connectors
Audio: front panel — one headphone and one microphone connector
back panel — six connectors for 7.1 channel support
Video: one 15-pin VGA connector ; one 19-pin HDMI connector

Expansion Slots
PCI-
Connectors: one
Connector size: 124-pin
Connector data width (maximum): 32 bit
Bus speed: 33 MHz

PCI Express x16-
Connectors: one
Connector size: 164-pin
Connector data width (maximum): 16 PCI Express lanes
Bus speed: 16 GB/s (bi-directional)

PCI Express x1-
Connectors: two
Connector size: 36-pin
Connector data width (maximum): 1 PCI Express lane
Bus speed: 500 MB/s (bi-directional)

Drives-
Externally accessible:
two 5.25-inch bays for SATA DVD-ROM, SATA DVD+/-RW Super Multi Drive, or Blu-ray Disc combo drive
one 3.5-inch FlexBay for an optional Media Card Reader
Internally accessible:
two 3.5-inch bays for SATA hard drives
Part Number 18D1Y
Condition Refurbished
Item Weight 2.2 lb(s).
Chipset Intel
Video Graphics Upgradable (video card not included)
Warranty One (1) Year
